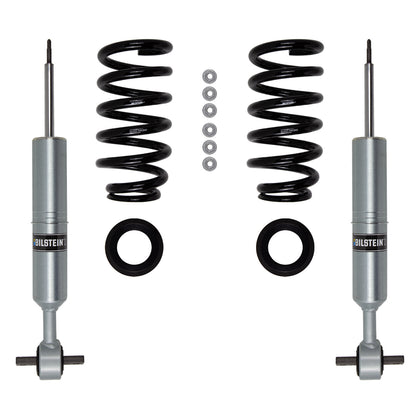

Bilstein Chevy/GMC 1500 Trailboss/AT4 2wd/4wd '19-24 6112 Adj. Shock & Coil Kit
SKU: BIL-47-309524
Regular price
$885
Regular price
Unit price
Translation missing: en.accessibility.unit_price_separator
Verify fitment
Verified Fit
Does Not Fit
Vehicle Name:
Engine:
Bed Length:
Body Type:
Position:
Quantity Per Vehicle:
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
You're on the list!
DETAILS
Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring...
- SERIES
- B8 6112
BOOT INCLUDED
No
FINISH
Dampers: Zinc Plated/Springs: Black
SHAFT DIAMETER
18mm
PISTON DIAMETER
60mm
INTERNAL DESIGN
Monotube
RESERVOIR
No
Bilstein Chevy/GMC 1500 Trailboss/AT4 2wd/4wd '19-24 6112 Adj. Shock & Coil Kit
SKU: BIL-47-309524
Regular price
$885
Regular price
Unit price
Translation missing: en.accessibility.unit_price_separator
Recommended Add Ons
KEY DETAILS
SPECIFICATIONS
- SERIES
- B8 6112
- BOOT INCLUDED
- No
- FINISH
- Dampers: Zinc Plated/Springs: Black
- SHAFT DIAMETER
- 18mm
- PISTON DIAMETER
- 60mm
- INTERNAL DESIGN
- Monotube
- RESERVOIR
- No
- BRAND
- Bilstein
- BODY DESIGN
- Snap Ring Grooved Body (Coilover)
- COLLAPSED LENGTH (IN)
- 17.78
- COLLAPSED LENGTH (MM)
- 451.6
- EXTENDED LENGTH (IN)
- 21.97
- EXTENDED LENGTH (MM)
- 558.0
- SPRING SEAT INCLUDED
- Yes
- SEGMENT
- Light Truck
- STROKE/TRAVEL LENGTH (MM)
- 106.4
- STROKE/TRAVEL LENGTH (IN)
- 4.19
- FRONT MAIN SPRING RATE (LBS/IN)
- 600
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
