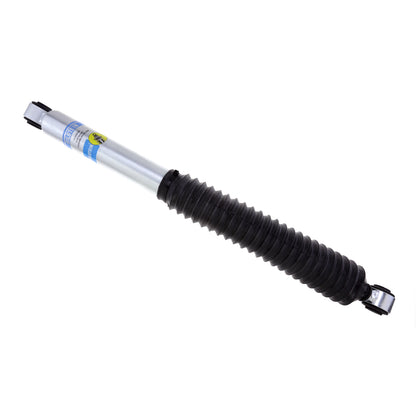

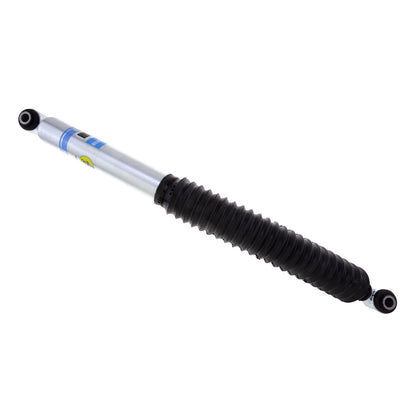

Bilstein Chevy/GMC 1500 2wd/4wd 07-18 5100 Rear Shocks
SKU: BIL-33-238319
Regular price
$118
Regular price
Unit price
Translation missing: en.accessibility.unit_price_separator
Verify fitment
Verified Fit
Does Not Fit
Vehicle Name:
Engine:
Bed Length:
Body Type:
Position:
Quantity Per Vehicle:
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
You're on the list!
DETAILS
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance....
- SERIES
- B8 5100
LOWER MOUNT TYPE
Eye 14.1mm
UPPER MOUNT TYPE
Eye 14.1mm
BOOT INCLUDED
Black Bellows
FINISH
Zinc Plated
SHAFT DIAMETER
14mm
ADJUSTABLE DAMPING
Non-Adjustable
Bilstein Chevy/GMC 1500 2wd/4wd 07-18 5100 Rear Shocks
SKU: BIL-33-238319
Regular price
$118
Regular price
Unit price
Translation missing: en.accessibility.unit_price_separator
Recommended Add Ons
KEY DETAILS
SPECIFICATIONS
- SERIES
- B8 5100
- LOWER MOUNT TYPE
- Eye 14.1mm
- UPPER MOUNT TYPE
- Eye 14.1mm
- BOOT INCLUDED
- Black Bellows
- FINISH
- Zinc Plated
- SHAFT DIAMETER
- 14mm
- ADJUSTABLE DAMPING
- Non-Adjustable
- PISTON DIAMETER
- 46mm
- INTERNAL DESIGN
- Monotube
- RESERVOIR
- No
- BRAND
- Bilstein
- BODY DESIGN
- Smooth Body (Non-Coilover)
- COLLAPSED LENGTH (IN)
- 16.18
- COLLAPSED LENGTH (MM)
- 411.0
- EXTENDED LENGTH (IN)
- 25.79
- EXTENDED LENGTH (MM)
- 655.0
- SPRING SEAT INCLUDED
- No
- SEGMENT
- Light Truck
- STROKE/TRAVEL LENGTH (MM)
- 244.1
- STROKE/TRAVEL LENGTH (IN)
- 9.61
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
