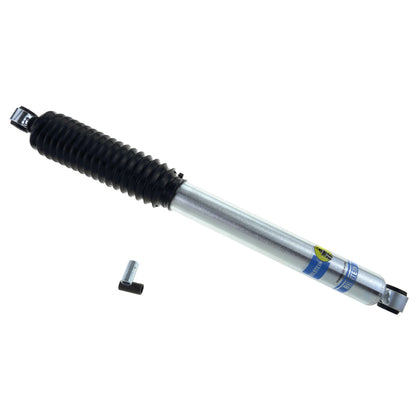

Bilstein Ford Ranger 2wd/4wd '83-12 5100 Rear Shock
SKU: BIL-24-185509
FITMENT NOTES
Out of stock. Sign up to know when this part is available.
- SERIES
- B8 5100
LOWER MOUNT TYPE
Eye 16mm
UPPER MOUNT TYPE
Eye 16mm
BOOT INCLUDED
Black Bellows
FINISH
Zinc Plated
SHAFT DIAMETER
14mm
ADJUSTABLE DAMPING
Non-Adjustable
SKU: BIL-24-185509
KEY DETAILS
SPECIFICATIONS
- SERIES
- B8 5100
- LOWER MOUNT TYPE
- Eye 16mm
- UPPER MOUNT TYPE
- Eye 16mm
- BOOT INCLUDED
- Black Bellows
- FINISH
- Zinc Plated
- SHAFT DIAMETER
- 14mm
- ADJUSTABLE DAMPING
- Non-Adjustable
- PISTON DIAMETER
- 46mm
- INTERNAL DESIGN
- Monotube
- RESERVOIR
- No
- BRAND
- Bilstein
- BODY DESIGN
- Smooth Body (Non-Coilover)
- COLLAPSED LENGTH (IN)
- 16.14
- COLLAPSED LENGTH (MM)
- 410.0
- EXTENDED LENGTH (IN)
- 26.16
- EXTENDED LENGTH (MM)
- 664.5
- SPRING SEAT INCLUDED
- No
- SEGMENT
- Light Truck
- STROKE/TRAVEL LENGTH (MM)
- 254.5
- STROKE/TRAVEL LENGTH (IN)
- 10.02
COMPATIBLE VEHICLES
More information may be necessary to guarantee this part fits these vehicles. Click on a vehicle and finish filling out the listed requirements to confirm fit.
FORD
YEAR
MODEL
2011
Ranger
2010
Ranger
2009
Ranger
2008
Ranger
2007
Ranger
2006
Ranger
2005
Ranger
2004
Ranger
2003
Ranger
2002
Ranger
2001
Ranger
2000
Ranger
1999
Ranger
1998
Ranger
1997
Ranger
1996
Ranger
1995
Ranger
1994
Ranger
1993
Ranger
1992
Ranger
1991
Ranger
1990
Ranger
1990
Bronco II
1989
Ranger
1989
Bronco II
1988
Ranger
1988
Bronco II
1987
Ranger
1987
Bronco II
1986
Ranger
1986
Bronco II
1985
Ranger
1985
Bronco II
1984
Ranger
1984
Bronco II
1983
Ranger
